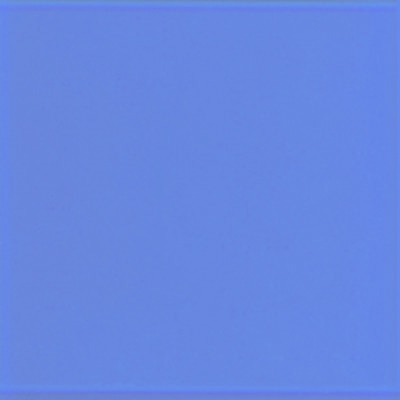

DISTANT BLUE

DISTANT BLUE

£0.00

  • 4mm colour coated low iron (crystal clear) or float glass (slight green tint)
SKU: DIAMOND DECOR 8 DISTANT BLUE Category:

Description

DIAMOND DÉCOR 8 DISTANT BLUE
DIAMOND DÉCOR 18 DISTANT BLUE

FACE MATERIAL:

4mm colour coated low iron (crystal clear) or float glass (slight green tint)



CORE MATERIAL:

N/A



BACK MATERIAL:

Impact resistant layer from 4mm expanded polyether polymer

FACE MATERIAL:

4mm colour coated low iron (crystal clear) or float glass (slight green tint)



CORE MATERIAL:

Impact resistant layer from 2mm expanded polyether polymer



BACK MATERIAL:

12mm (nominal) thick lightweight composite board obviating the need for smooth continuous backgrounds

NOMINAL THICKNESS:

8mm



BACKGROUND:

Smooth continuous substrate



EDGE TREATMENT:

Polished all round (PAR)



WEIGHT:

10kg per m² (nominal)



MAXIMUM PANEL SIZE:

3000 x 1200mm



SAFETY:

Shatterproof: Impact resistant to BS EN 12600
Fire: BS 476 Part 6 & 7 Class 1. Complies with requirements for Class 0.
(see Test Data Summary Sheet)



JOINT TREATMENT:

Arrised butt vertical joint, polished anodized aluminium ‘H’ section trims to horizontal joints if required - refer to manufacturer for recommendations.



FIXING METHOD:

Adhesive and/or polished anodized aluminium ‘J’ section trims - refer to Advice Manual for recommendations.



ACCESSORIES:

Purpose made polished anodized aluminium ‘J’ section trims to perimeter and ‘H’ section trims to horizontal joints.



PROCESSING OPTIONS:

Factory cut outs to accommodate control panels, ironmongery etc.
Site cutting possible.



COLOURS:

Please see Diamond Décor Colour Guide for options.

NOMINAL THICKNESS:

18mm



BACKGROUND:

Block & brickwork, timber/metal studs



EDGE TREATMENT:

Polished all round (PAR)



WEIGHT:

11kg per m² (nominal)



MAXIMUM PANEL SIZE:

3000 x 1150mm



SAFETY:

Shatterproof: Impact resistant to BS 6206
Fire: BS 476 Part 6 & 7 Class 1. Complies with requirements for Class 0.
(see Test Data Summary Sheet)



JOINT TREATMENT:

Arrised butt vertical joint, polished anodized aluminium ‘H’ section trims to horizontal joints if required - refer to manufacturer for recommendations.



FIXING METHOD:

Adhesive and/or polished anodized aluminium ‘J’ section trims - refer to Advice Manual for recommendations.



ACCESSORIES:

Purpose made polished anodized aluminium ‘J’ section trims to perimeter and ‘H’ section trims to horizontal joints.



PROCESSING OPTIONS:

Factory cut outs to accommodate control panels, ironmongery etc.
Site cutting possible.



COLOURS:

Please see Diamond Décor Colour Guide for options.
