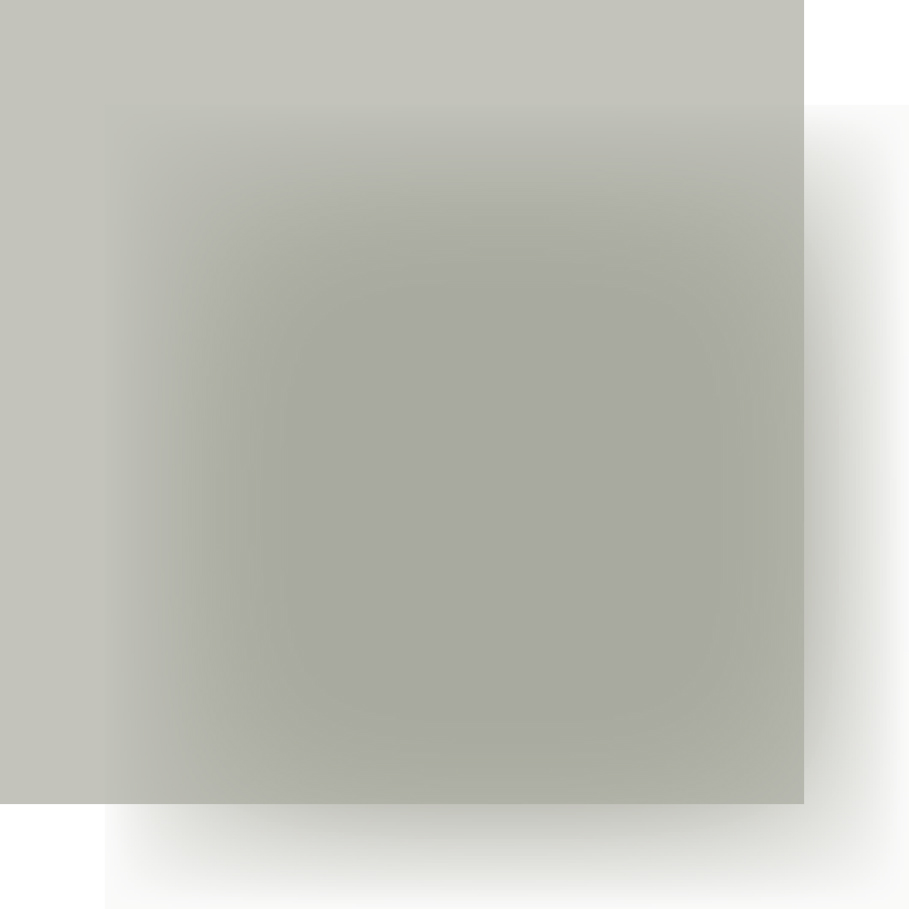

SLCGY4 LIGHT GREY

SLCGY4 LIGHT GREY

£0.00

  • Laminated glass with opaque colour interlayers - Max width 2100mm
SKU: SLCGY4 Category: Tag:

Description

SPECIFICATION:

Available in annealed or toughened (tempered) glass to comply with BS EN 12600, BS 6206 Class A or required national safety standard.



MAX. PANEL SIZE:

2100mm x 4700mm



THICKNESS:

4mm+4mm (nominal overall thickness 10mm)
6mm+6mm (nominal overall thickness 14mm)
Also available in a combination of other glass thicknesses.



GLASS OPTIONS:

Low Iron (crystal clear) - as standard
Float Glass (slight green tint)
Mirror Backed



EDGE OPTIONS:

Polished all round (PAR)
Arrised all round (AAR)
Ground all round (GAR)



SURFACE FINISHES:

Clear (standard), sandblast or acid etch.



APPLIED FINISHES:

Opaque colours or mirror finish can be applied to the rear leaf of the glass.



PROCESSING OPTIONS:

Shaping, drilled holes, notches, waterjet cutouts.



TOLERANCES:

+/- 2mm (glass size)



COLOURS:

Please see Colour Laminate Guide for options.



PLEASE NOTE:

Colour laminate products are not recommended for use in external or wet/damp environments unless fully framed and sealed. We advise that particular care must be taken to protect the edges of laminated panels against water ingress. Prolonged contact with water can cause the interlayers used in laminating to deteriorate, both in appearance and adhesion. Edges should also be protected from contact with compounds and products containing mineral or vegetable oils and unsuitable glazing compounds such as acid curing silicones.

When specifying this product please ensure that the end user is aware of material limitations as Chelsea Artisans Ltd cannot accept rejection on this basis as per our T&Cs.

On large or complex projects we recommend prototype panels are produced for sign off and final approval.

For more information please refer to our Advice Manual (available on request).
